Model Whirlpool D6757^1 GAS RANGE – Common Parts & Diagrams
04 - BURNER
06 - OVEN DOOR , LIT/OPTIONAL

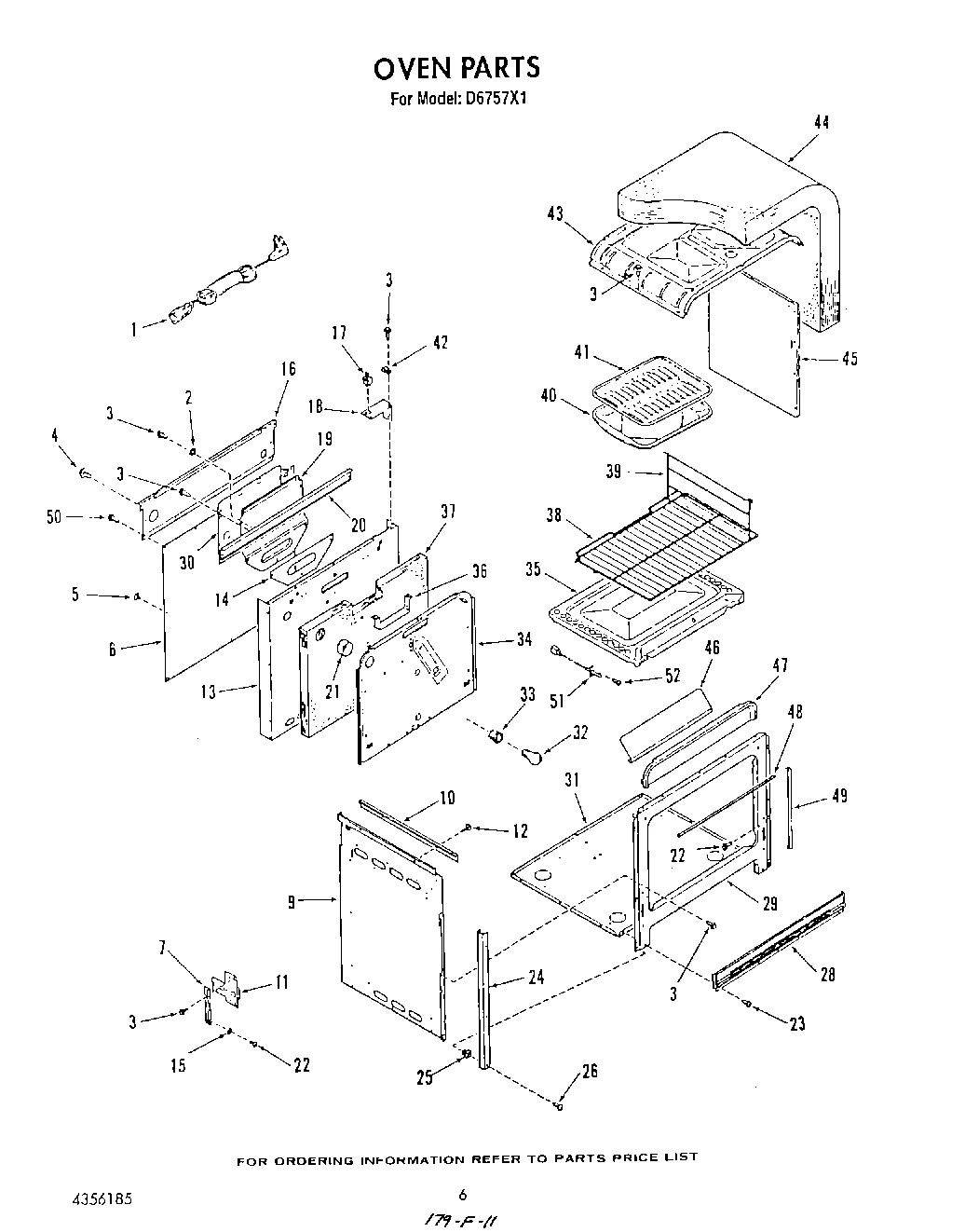

05 - OVEN

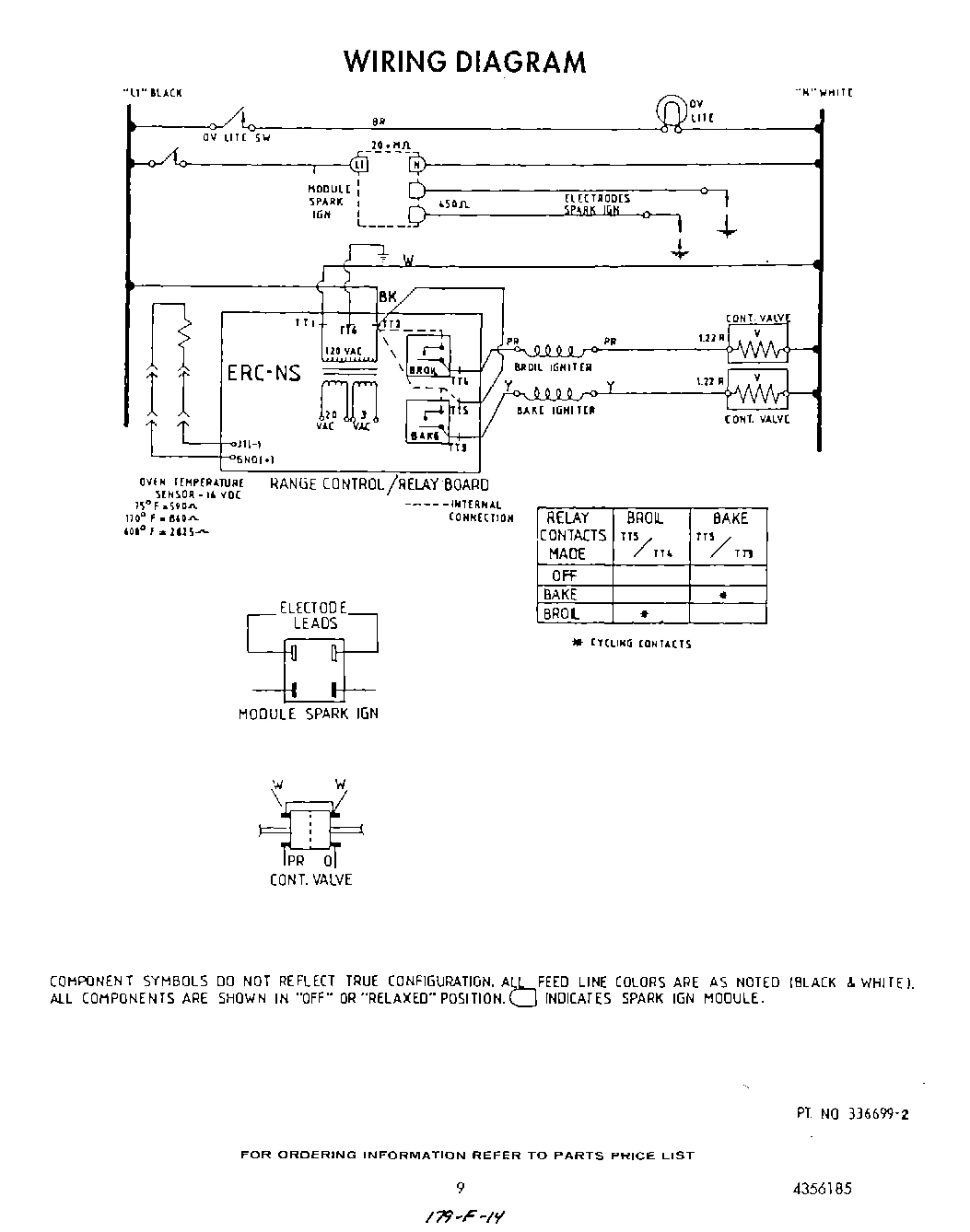

07 - WIRING DIAGRAM

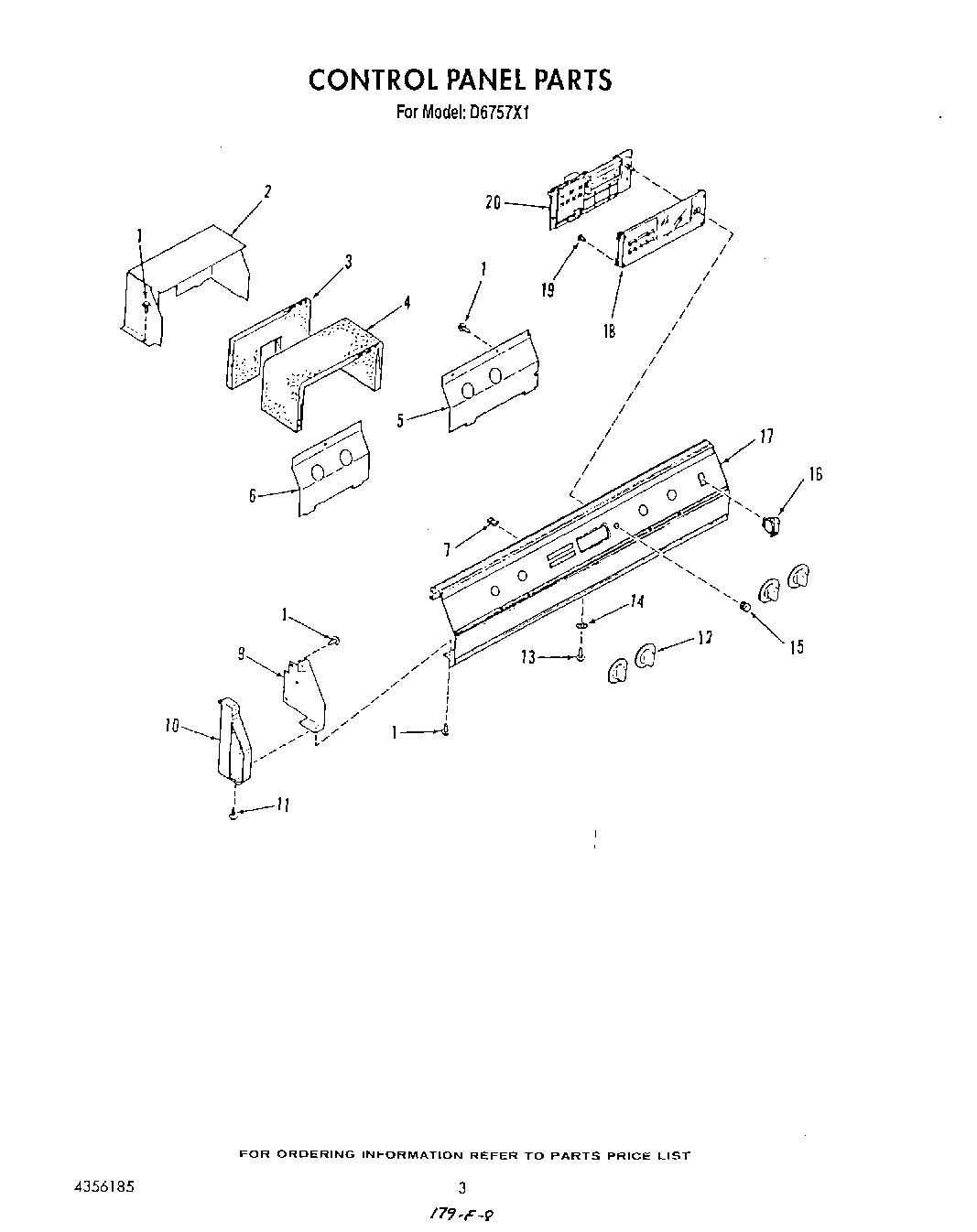

03 - CONTROL PANEL

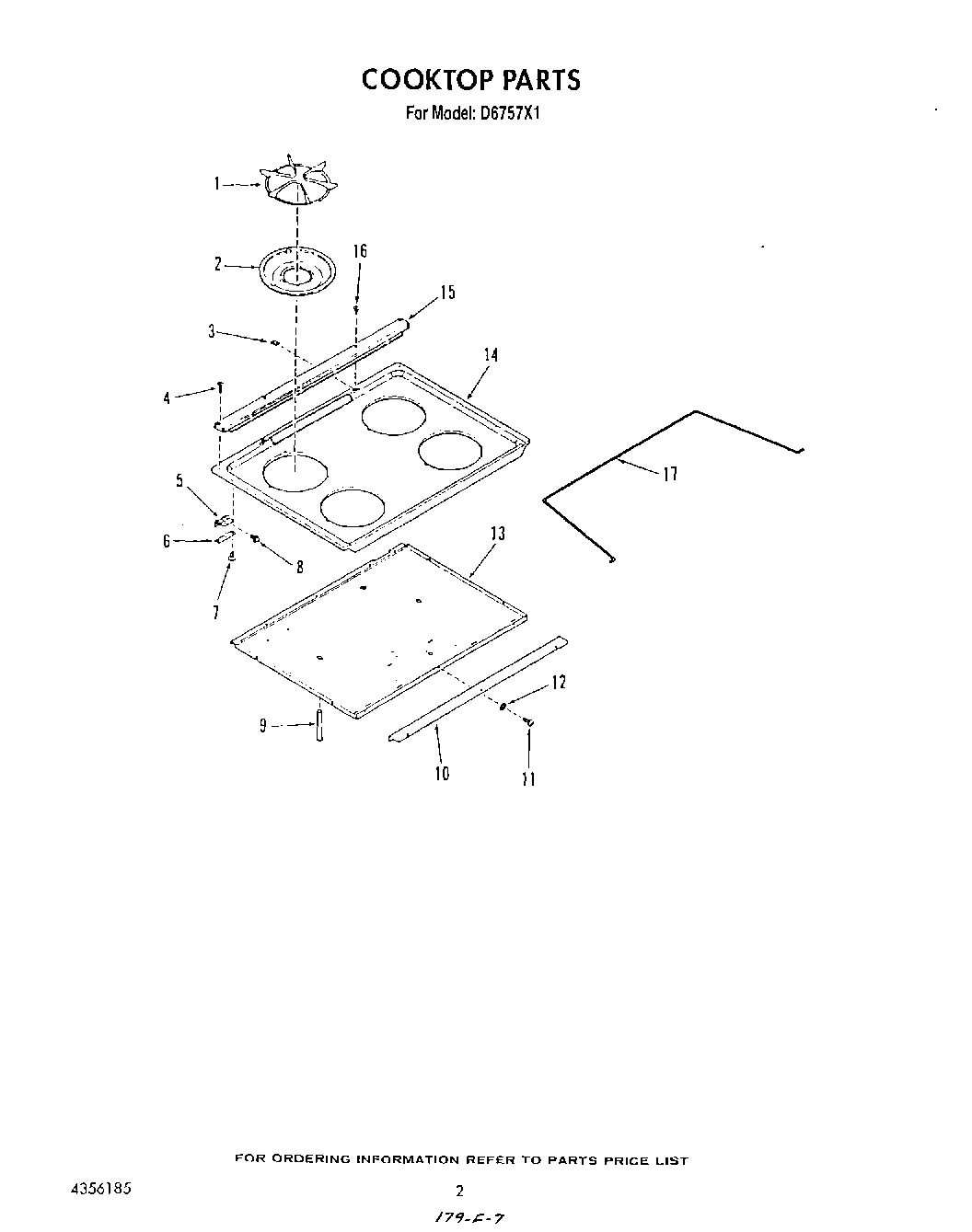

02 - COOK TOP
Common parts from model Whirlpool D6757^1 GAS RANGE
1
Screw, No.10-32 x 5/16 WPL 4326322 Contact Us For Availability
1
Service Cord WPL 4351709 Contact Us For Availability
1
Grate, Burner (4) WPL 4332487 Contact Us For Availability
2
Lockwasher WPL 4324059 Contact Us For Availability
2
Cover, Controls WPL 4338383 Contact Us For Availability
2
Pan, Aeration (4) WPL 4336308 Contact Us For Availability
3
Screw No.6-32x3/8 WPL 4323949 Contact Us For Availability
3
Screw No.10-32x3/8 WPL 4325101 Contact Us For Availability
3
Insulation-Cover WPL 4354282 Contact Us For Availability
3
Nut, Speed No.6-32 WPL 4325509 Contact Us For Availability
4
Module-Spark WPL 4333260 Contact Us For Availability
4
Screw No.10-32x1/4 WPL 4323953 Contact Us For Availability
4
Screw, No.10-32x17/32`` WPL 4323884 Contact Us For Availability
4
Insulation-Sides WPL 4354283 Contact Us For Availability
4
Screw No.6-32x7/8`` WPL 4332424 Contact Us For Availability
5
Hinge-Oven Door WPL 4334321 Contact Us For Availability
5
Clip WPL 4323413 Contact Us For Availability
5
Cover, Right WPL 4332059 Contact Us For Availability
5
Hinge (Lt or Rt) WPL 4332197 Contact Us For Availability
6
Support-Top Burner WPL 4332719 Contact Us For Availability
6
Cushion WPL 4324217 Contact Us For Availability
6
Wire Cover-Rear WPL 4334075 Contact Us For Availability
6
Cover-Left WPL 4332060 Contact Us For Availability
6
Bracket, Mounting-Hinge (Lt or Rt) WPL 4332273 Contact Us For Availability
7
Electrode-Igniter (Left) WPL 4331309 Contact Us For Availability
7
Electrode-Igniter (Right) WPL 4331376 Contact Us For Availability
7
Nut, Speed No.10-32 WPL 4324015 Contact Us For Availability
7
Glass-Outer Door WPL 4337860 Contact Us For Availability
7
Hinge, Lt or Rt WPL 4333677 Contact Us For Availability
7
Screw No.6-32x3/16`` WPL 4327216 Contact Us For Availability
8
Burner, Rear Top (Lt or Rt) WPL 4332713 Contact Us For Availability
8
Frame, Oven Door WPL 4337859 Contact Us For Availability
9
Screw-Adjustment, (Air Shutter) WPL 4328513 Contact Us For Availability
9
Handle, Door WPL 4336828 Contact Us For Availability
9
Retainer, Insulat. (Right) WPL 4337988 Contact Us For Availability
9
Retainer, Insulat. (Left) WPL 4337989 Contact Us For Availability
9
Bracket-End Cap (Right) WPL 4332175 Contact Us For Availability
9
Bracket-End Cap (Left) WPL 4332176 Contact Us For Availability
9
Raceway (Lt or Rt) WPL 4333187 Contact Us For Availability
10
Valve, Gas (4) WPL 4336713 Contact Us For Availability
10
Spacer, Dr. Handle WPL 4323997 Contact Us For Availability
10
Trim-Bottom Burner Box (Lt or Rt) WPL 4332532 Contact Us For Availability
10
End Cap (Right) WPL 4336416 Contact Us For Availability
10
End Cap (Left) WPL 4336417 Contact Us For Availability
10
Extension-Bottom Burner Box WPL 4336799 Contact Us For Availability
11
Screw No.10-32x1/2`` WPL 4323776 Contact Us For Availability
11
Screw WPL 4336631 Contact Us For Availability
11
Hinge Box Assembly Lt/Rt WPL 4333675 Contact Us For Availability
12
Shield-Gas Valve (4) WPL 4329601 Contact Us For Availability
12
Washer WPL 4323979 Contact Us For Availability
12
Washer, Fiber WPL 4336868 Contact Us For Availability
12
Screw, No.10 x 1 WPL 4350930 Contact Us For Availability
12
Knob-Control (4) WPL 4342654 Contact Us For Availability
13
Seal, Valve-1 ea. Illus. 10 & 20 WPL 4331665 Contact Us For Availability
13
Washer WPL 4323694 Contact Us For Availability
13
Cover, Back WPL 4337975 Contact Us For Availability
13
Bottom-Burner Box WPL 4336797 Contact Us For Availability
14
Shutter, Air WPL 4328512 Contact Us For Availability
14
Seal-Deflector WPL 4332054 Contact Us For Availability
14
Cooktop WPL 4337076 Contact Us For Availability
15
Burner, Top Front WPL 4332712 Contact Us For Availability
15
Lining-Oven Door WPL 4332055 Contact Us For Availability
15
Washer WPL 4323206 Contact Us For Availability
15
Knob, Clock WPL 4337111 Contact Us For Availability
15
Trim WPL 4336878 Contact Us For Availability
16
Regulator-Pressure WPL 4334271 Contact Us For Availability
16
Glass, Inner Door WPL 4327671 Contact Us For Availability
16
Cover, Wire WPL 4334142 Contact Us For Availability
16
Screw No.6-32x1/2 WPL 4323701 Contact Us For Availability
17
Spacer, Glass Door WPL 4336869 Contact Us For Availability
17
Disconnect WPL 4324642 Contact Us For Availability
17
Panel, Control WPL 4337805 Contact Us For Availability
17
Support-Cooktop WPL 4337663 Contact Us For Availability
18
Retainer-Insul. WPL 4333361 Contact Us For Availability
18
Bracket WPL 4332070 Contact Us For Availability
18
Lens, Clock WPL 4337553 Contact Us For Availability
19
Spacer, Support WPL 4336938 Contact Us For Availability
19
Rivet WPL 4325611 Contact Us For Availability
19
Deflector, Flue WPL 4334074 Contact Us For Availability
19
Screw WPL 4323476 Contact Us For Availability
20
Valve, Shut Off WPL 4335080 Contact Us For Availability
20
Insulation WPL 4328500 Contact Us For Availability
20
Switches WPL 4333057 Contact Us For Availability
20
Sensor WPL 4337735 Contact Us For Availability
20
Main WPL 4337858 Contact Us For Availability
20
Support, Flue WPL 4332066 Contact Us For Availability
20
Control-Clock/Oven WPL 4337979 Contact Us For Availability
21
Tubing 3/8`` (Shut-Off valve to Control Valve WPL 4342732 Contact Us For Availability
21
Retainer, Insul.-Oven Light WPL 4324290 Contact Us For Availability
22
Nut, Inverted 3/8 WPL 4324278 Contact Us For Availability
23
Screw No.10-32x1/2 WPL 4332521 Contact Us For Availability
24
Valve, Control WPL 4338490 Contact Us For Availability
24
Trim, Side (Right) WPL 4329673 Contact Us For Availability
24
Trim, Side (Left) WPL 4329674 Contact Us For Availability
25
Tubing 3/8``(Valve-Broiler Burner) WPL 4342731 Contact Us For Availability
25
Nut-Expansion (6) WPL 4331381 Contact Us For Availability
26
Screw, Mounting-1 Each-illus. 10 & 20 WPL 4331097 Contact Us For Availability
26
Screw No.8x5/8 WPL 4331822 Contact Us For Availability
27
Seal (for No.26) WPL 4331164 Contact Us For Availability
28
Manifold Pipe WPL 4333853 Contact Us For Availability
28
Trim, Bottom WPL 4331971 Contact Us For Availability
29
Tubing 3/8`` W/Orifice Valve/Oven Burner WPL 4338025 Contact Us For Availability
29
Frame, Front WPL 4336795 Contact Us For Availability
30
Shield, Deflector WPL 4342733 Contact Us For Availability
31
Bracket, Mounting WPL 4332069 Contact Us For Availability
31
Bottom, Main WPL 4334072 Contact Us For Availability
32
Bracket, Igniter WPL 4331163 Contact Us For Availability
33
Ignitor-Bake/Broil WPL 4338008 Contact Us For Availability
34
Back, Oven WPL 4337857 Contact Us For Availability
35
Shutter, Air WPL 4331501 Contact Us For Availability
35
Bottom, Oven WPL 4327512 Contact Us For Availability
36
Bracket-Orifice Fitting/Ov. Burner WPL 4337445 Contact Us For Availability
36
Retainer, Insul. WPL 4325775 Contact Us For Availability
37
Screw, Adjustment-Air Shutter WPL 4331502 Contact Us For Availability
37
Insulation, Back WPL 4332184 Contact Us For Availability
38
Fitting-Orifice/-Broiler Burner WPL 4336710 Contact Us For Availability
38
Rack, Oven (2) WPL 4353352 Contact Us For Availability
39
Guide, Oven Rack (Right) WPL 4329383 Contact Us For Availability
39
Guide, Oven Rack (Left) WPL 4329384 Contact Us For Availability
41
Burner, Broil (Inc`s No.40 & No.42) WPL 4332738 Contact Us For Availability
42
Baffle/Lower-Broil WPL 4328733 Contact Us For Availability
42
Clip (For No.1) WPL 4323987 Contact Us For Availability
43
Baffle-Oven Burner WPL 4332392 Contact Us For Availability
43
Top, Oven WPL 4332463 Contact Us For Availability
44
Baffle-Oven Burner WPL 4334487 Contact Us For Availability
44
Insulation-Top & Sides WPL 4325888 Contact Us For Availability
45
Side, Oven (Right) WPL 4332057 Contact Us For Availability
45
Side, Oven (Left) WPL 4332058 Contact Us For Availability
46
WPL 4332515 WPL 4332515 Contact Us For Availability
46
Shield, Heat WPL 4325673 Contact Us For Availability
47
Panel-Broil Front WPL 4336796 Contact Us For Availability
48
Seal-Oven Door Top WPL 4329249 Contact Us For Availability
49
Seal-Oven Dr. Side (Rt or Lt) WPL 4327162 Contact Us For Availability
51
Sensor WPL 4338291 Contact Us For Availability
52
Screw WPL 4338182 Contact Us For Availability
× ![]()
